Tires mounted gantry crane

Jun 08, 2020

Have you ever used tires mounted gantry crane made in Kevino?
Tires mounted gantry crane is a better choice as you do not want to lay rail tracks on the ground.
Main features of tires mounted gantry crane from Kevino:
1. Flexible moving with tires (23.5R25/8)mounted, 360 degree steering
2. Integrated mechanical, electrical and hydraulic control technology
3. One diesel power generator (75kw)equipped for the machine, no additional power supply needed as working in the worksite

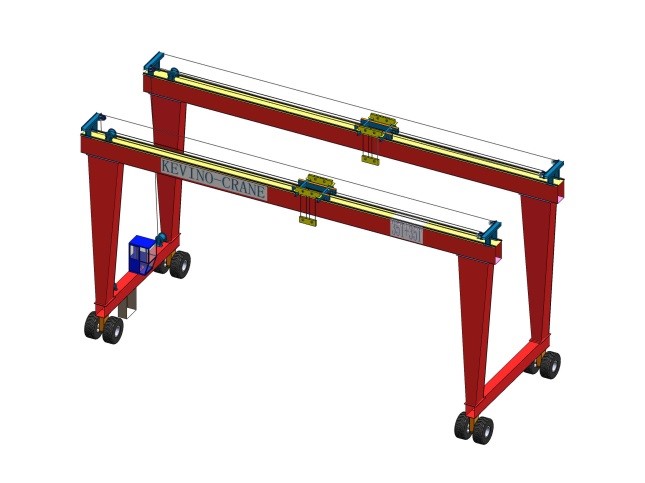

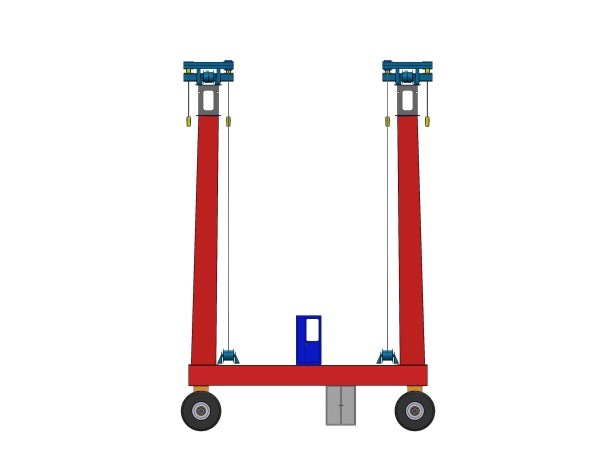

Below pictures are tires mounted gantry crane


Main technical details
No Item Details
1 Lifting capacity 70t (35t+35t)
2 Span 25m
3 Lifting height 12m
4 Diesel power generator 75kw
5 Slope climbing 1.5%
6 Lifting and lower speed 0-1m/min (heavy load)
0-1.5m/min (empty load)
7 Trolley moving speed 0-3m/min
8 Crane moving speed 0-17m/min (heavy load)
0-35m/min(empty load)
9 Support cylinders specification D/d/S=140/100/300mm
10 Suspension quantity 4
11 Driving axles/driven axles 4/4
12 Supplier Kevino from China

Kevino is one professional supplier of overhead cranes and gantry cranes from China. Should you have any interest, just feel free to write to me anytime: brenda@kevino-crane.com
