General overview

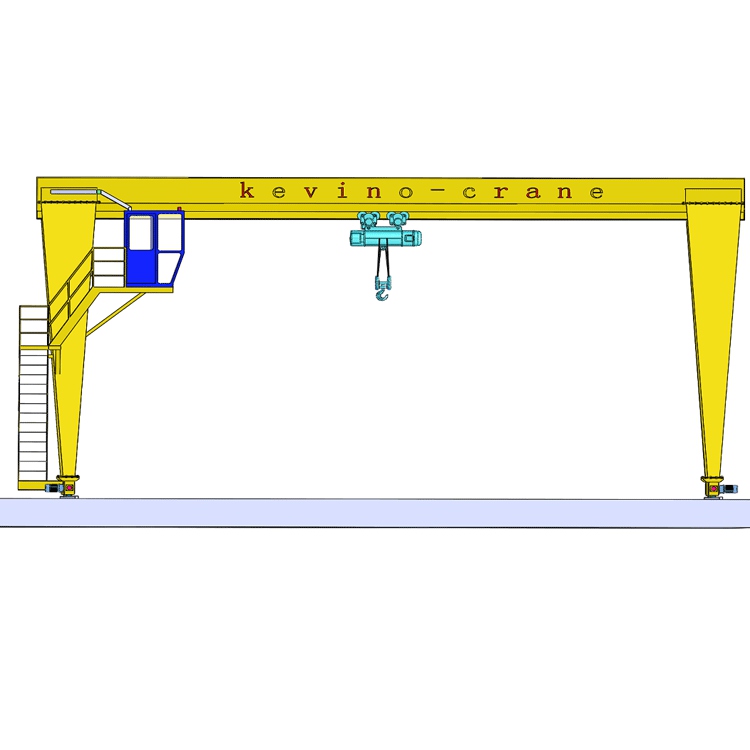

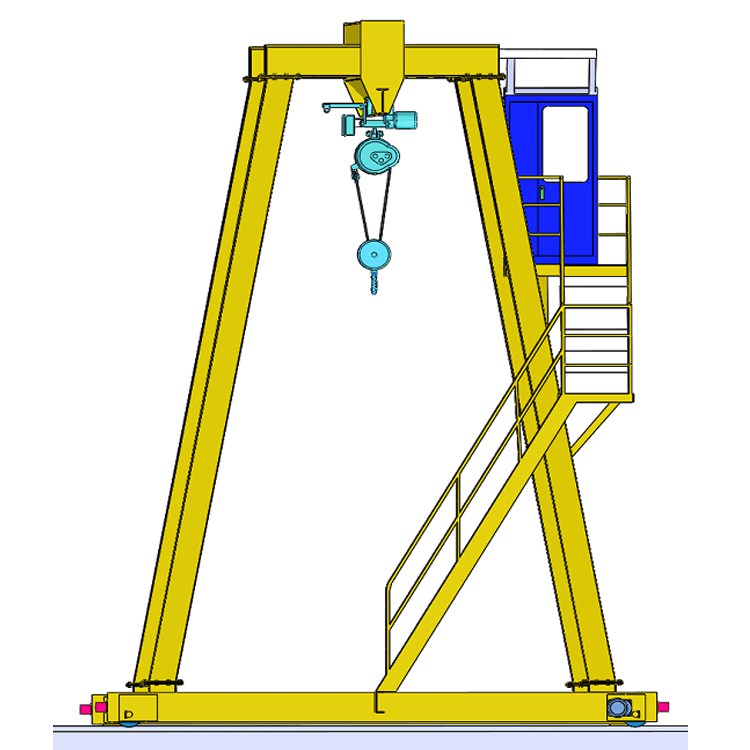

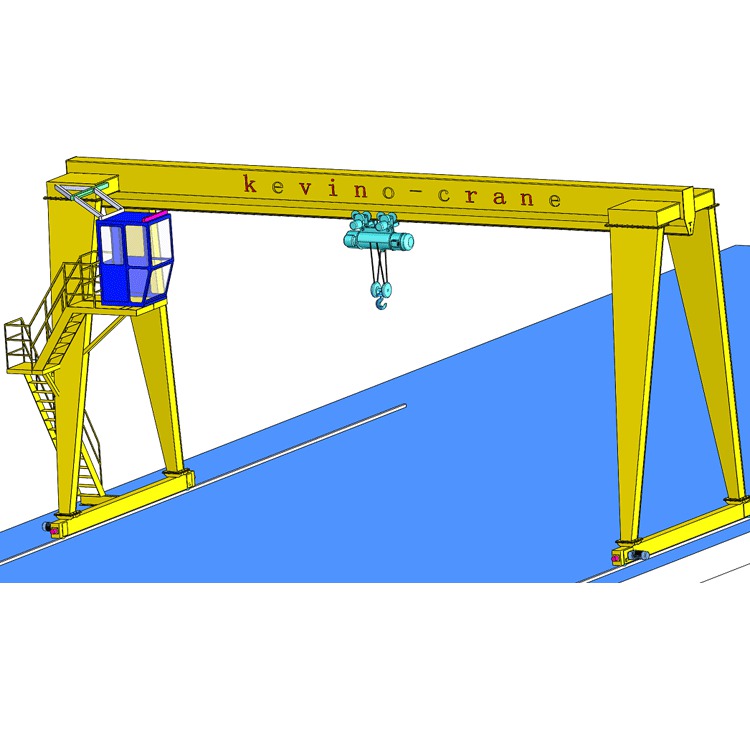

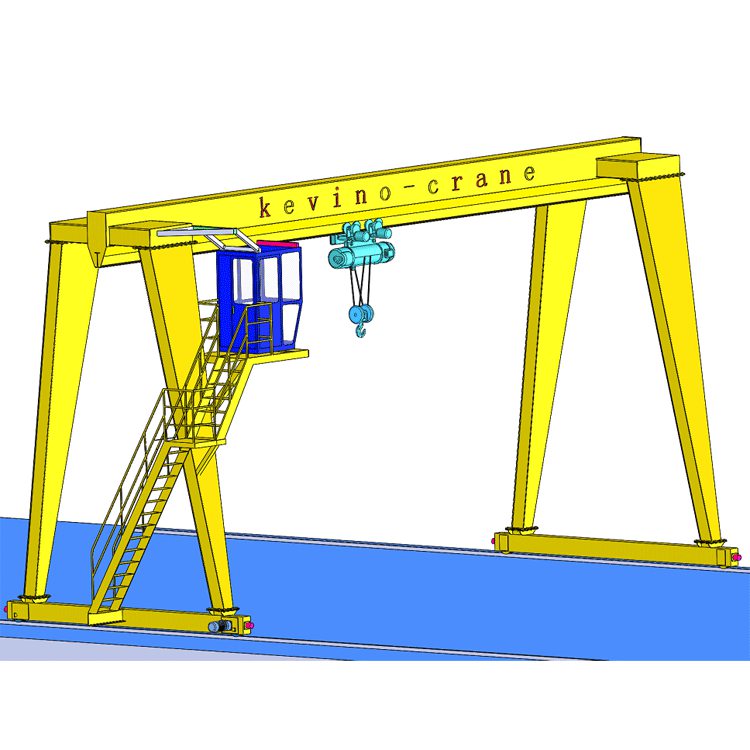

Single Girder Gantry cranes lift or lower materials with lifting mechanism and move objects by crane moving mechanism along with the rail track. They are popularly used in stockyard factory precast girder yard or other worksite outdoor

Main structure

• Main girder
• End girder
• Support legs
• Crane moving mechanism
• Electrical hoist
• Electrical control system

Main features

• Main girder end girder and support legs are fabricated as box girder with steel Q235B and do shot blasting treatment before painting which greatly reduces the risk of easy corrosion and rusting
• Crane moving mechanism uses three-in-one motors and precision cast steel wheel which ensures crane the move smoothly
• Compact electric hoist widely used is easily operated and inspected Kevino will equip reliable brand hoist for all cranes;
• Electrical control system brand: Schneider or China famous brand with same quality. VFDs could be added for soft moving according to customers’ demands.

Technical Standards

• All gantry cranes fabricated shall be in accordance with GB/T14405-2011 "General-purpose Overhead Crane"
• All cranes power supply shall be customized to suit different demands from different customers.
• All cranes delivered to customers shall provide general drawings and instruction manuals

Technical parameters
