General overview

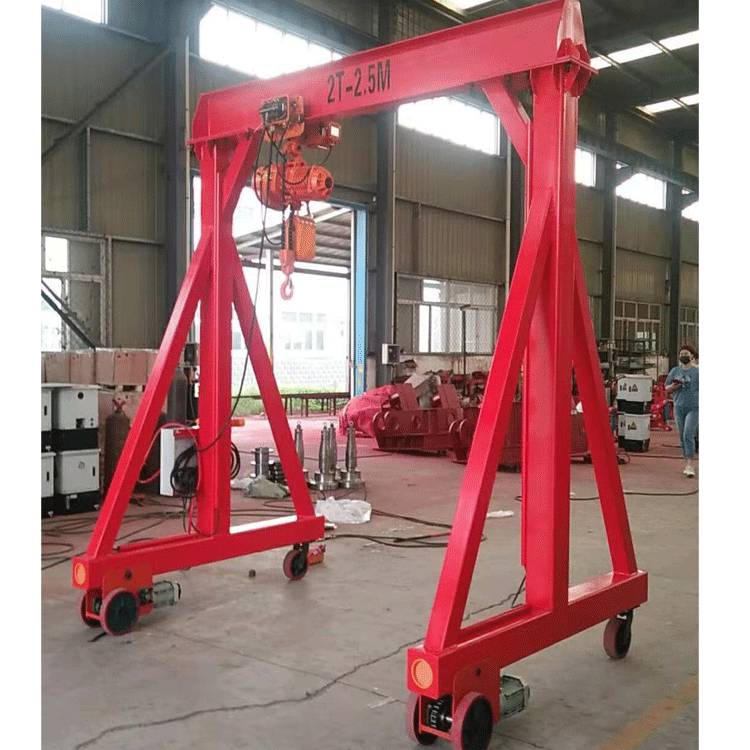

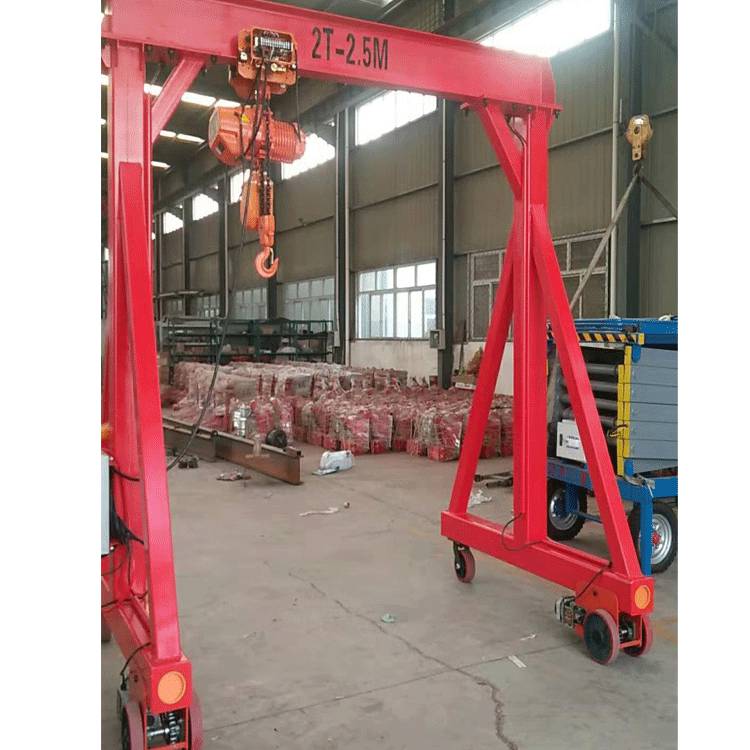

Hand push movable and portable gantry crane is widely used for light materials handling in daily production in the car maintenance factory warehouse mould factory and construction worksite.
Hand push portable gantry crane could bear loads from 100kgs to 5000kgs with adjustable height and width very convenient to operate.

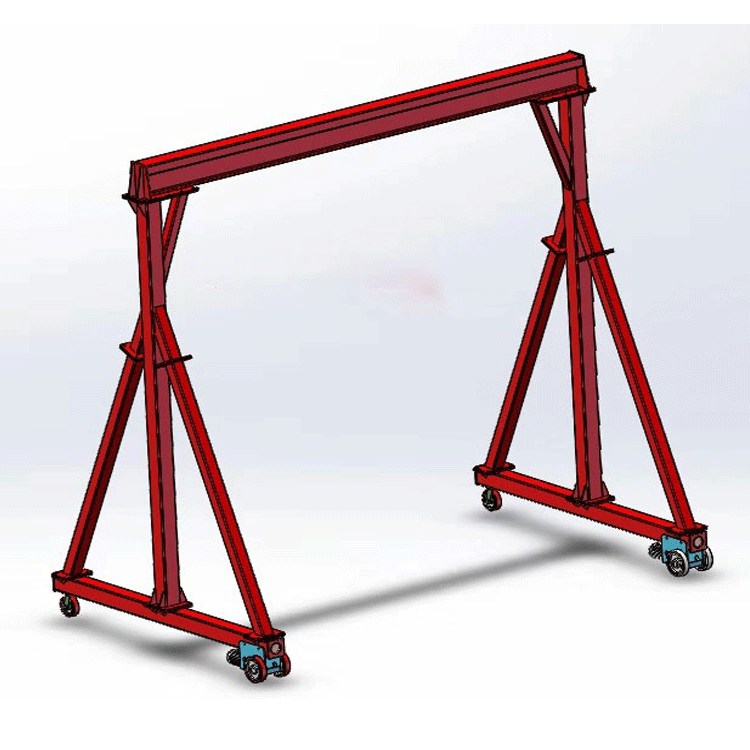

Main structure

• Main gantry
• Support legs
• Moving wheels
• Electrical hoist/Chain hoist
• Electrical control system

Main features

• Convenient moving with universal wheels easy and fast assembly and transportation.
• Width and height could be adjusted to suit different situation
• Small landing area
• Flexible working in small factory
• Could load capacity from 100-5000kgs

Technical Standards

• All gantries are fabricated with high quality thicker steel structure by precision welding stable and strong bearing loads
• All cranes power supply shall be customized to suit different demands from different customers.
• All cranes delivered to customers shall provide general drawings and instruction manuals

Technical parameters
